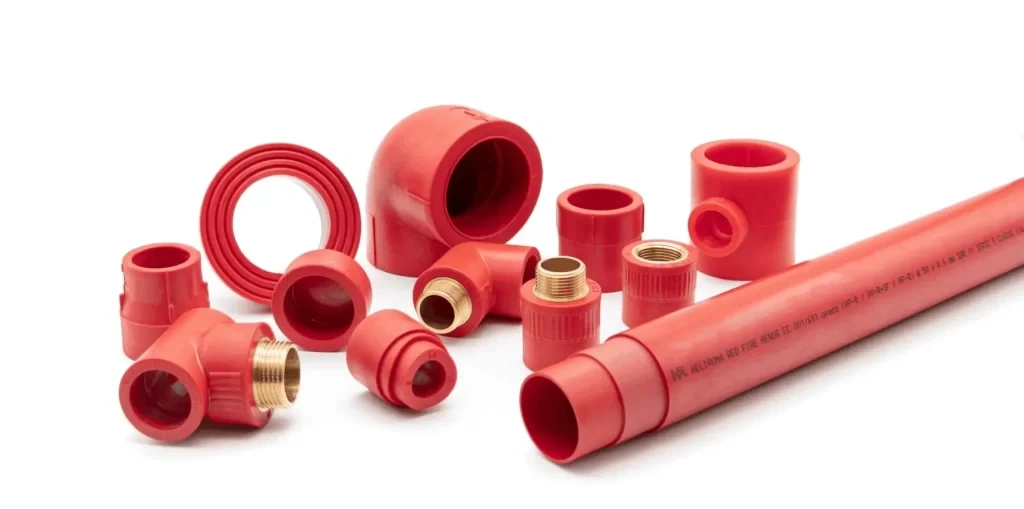

The Thermplus Pipe System is a premium, glass fiber-reinforced composite (PPR-GF-PPR) piping solution. By sandwiching a glass fiber layer between two Polypropylene Random Copolymer (PPR) layers, this pipe significantly overcomes the limitations of standard PPR pipes, such as high thermal expansion, while offering superior strength and flame retardancy.
The middle glass fiber layer acts as a reinforcing agent that reduces extension capability and produces durability to high pressure at high temperature. This triple-layer construction (PPR-GF-PPR) creates a rigid pipe that maintains its shape even under extreme thermal stress, making it a go-to solution for demanding industrial and firefighting applications
Greentherm industrial piping systems deliver reliable performance across critical applications where traditional metal piping fails due to corrosion, scaling, or chemical attack.
Safe and reliable conveyance of aggressive chemicals including acids, alkalis, and solvents across petrochemical and processing facilities.
Distribution of hot water up to 110°C for industrial processes, district heating networks, and facility heating systems.
Efficient transport of chilled water for HVAC applications, process cooling, and air conditioning networks with minimal thermal loss.
Durable piping for ground source heat pump loops and solar thermal collector circuits, resistant to glycol and other heat transfer fluids.
Greentherm industrial piping systems outperform traditional materials across every critical performance metric, delivering long-term reliability and lower total cost of ownership.
Greentherm PPR-CT material maintains mechanical properties at elevated temperatures up to 110°C, unlike standard PPR pipes that soften under prolonged high-temperature exposure.
100% immune to rust, scaling, and chemical attack. Greentherm pipes never corrode, ensuring consistent flow rates and zero contamination of process fluids.
Engineered for 50+ years of continuous operation with minimal maintenance. The material’s high creep resistance ensures dimensional stability under constant pressure.
Low thermal conductivity (0.24 W/mK) reduces heat loss in hot water systems and prevents condensation in chilled water lines, saving energy throughout system life.
Greentherm piping systems are engineered by specialists with decades of experience in industrial fluid handling. Our technical team provides comprehensive support from system design through installation and commissioning, ensuring optimal performance for your specific application requirements.
Greentherm pipes and fittings are manufactured using premium PPR-CT resin from approved global suppliers. Every production batch undergoes rigorous quality testing to ensure compliance with international standards including ISO 15874, DIN 8077/8078, and EN 1452.
| Feature | Benefit |
|---|---|
| PPR-CT Polymer Technology | Enhanced creep resistance for long-term reliability under continuous pressure at high temperatures |
| Temperature Range -40°C to +110°C | Single system handles both cryogenic and high-temperature applications |
| Pressure Rating up to PN 25 | Suitable for high-pressure industrial systems up to 25 bar |
| 100% Corrosion Resistant | No rust, no scaling, no pitting — eliminates maintenance and replacement costs |
| Smooth Inner Bore (C=150) | Maximum flow rate with minimum pumping energy — up to 25% energy savings |
| Homogeneous Fusion Joints | Leak-proof connections as strong as the pipe itself — no gaskets to fail |
| Low Thermal Conductivity | Reduces heat loss by 20% compared to uninsulated metal pipes |
| Lightweight Construction | 1/6th the weight of steel — lower transport and installation costs |
| Chemical Resistance | Resists over 900 chemicals including acids, alkalis, salts, and alcohols |
| UV Stabilized | Suitable for outdoor installation with protection against solar degradation |
| Industry | Application |
|---|---|
| Petrochemical | Chemical transfer lines, process water, effluent handling |
| Pharmaceutical | Purified water (PW), water for injection (WFI), clean steam condensate |
| Food & Beverage | Hot process water, CIP lines, ingredient transport |
| HVAC | Chilled water, condenser water, heating hot water |
| District Energy | District heating and cooling distribution networks |
| Geothermal | Ground loop heat exchangers, brine circuits |
| Solar Thermal | Collector circuits, storage tank connections |
| Industrial Manufacturing | Cooling water, compressed air, process utilities |
We take pride in delivering construction projects that stand strong for generations. Explore some of our featured works below.
| Specification | Value |
|---|---|
| Material | PPR-CT (Polypropylene Random Copolymer – Crystallinity Tailored) |
| Density | 0.90 g/cm³ |
| Operating Temperature | -40°C to +110°C |
| Maximum Short-Term Temperature | 120°C |
| Pressure Ratings | PN 16, PN 20, PN 25 |
| Size Range | 20mm to 400mm OD |
| Thermal Expansion Coefficient | 0.15 mm/m°C |
| Thermal Conductivity | 0.24 W/mK |
| Hazen-Williams C-Value | 150 |
| Modulus of Elasticity | 800 – 1,100 MPa (at 20°C) |
| Joining Methods | Butt Fusion, Socket Fusion, Electrofusion |
| Color | Green (heating) / Blue (chilled water) as standard |
| Nominal OD (mm) | Wall Thickness (mm) | Inner Diameter (mm) | Weight (kg/m) |
|---|---|---|---|
| 20 | 3.4 | 13.2 | 0.18 |
| 25 | 4.2 | 16.6 | 0.28 |
| 32 | 5.4 | 21.2 | 0.45 |
| 40 | 6.7 | 26.6 | 0.70 |
| 50 | 8.3 | 33.2 | 1.09 |
| 63 | 10.5 | 42.0 | 1.72 |
| 75 | 12.5 | 50.0 | 2.45 |
| 90 | 15.0 | 60.0 | 3.52 |
| 110 | 18.3 | 73.4 | 5.25 |
| 125 | 20.8 | 83.4 | 6.80 |
| 140 | 23.3 | 93.4 | 8.55 |
| 160 | 26.6 | 106.8 | 11.10 |
| Nominal OD (mm) | Wall Thickness (mm) | Inner Diameter (mm) | Weight (kg/m) |
|---|---|---|---|
| 20 | 3.4 | 13.2 | 0.18 |
| 25 | 4.2 | 16.6 | 0.28 |
| 32 | 5.4 | 21.2 | 0.45 |
| 40 | 6.7 | 26.6 | 0.70 |
| 50 | 8.3 | 33.2 | 1.09 |
| 63 | 10.5 | 42.0 | 1.72 |
| 75 | 12.5 | 50.0 | 2.45 |
| 90 | 15.0 | 60.0 | 3.52 |
| 110 | 18.3 | 73.4 | 5.25 |
| 125 | 20.8 | 83.4 | 6.80 |
| 140 | 23.3 | 93.4 | 8.55 |
| 160 | 26.6 | 106.8 | 11.10 |
Greentherm PPR-CT pipes exhibit excellent resistance to the following chemicals:
Acids: Sulfuric, hydrochloric, nitric (dilute), phosphoric, acetic, citric
Alkalis: Sodium hydroxide, potassium hydroxide, ammonia solutions
Salts: Sodium chloride, calcium chloride, magnesium sulfate
Alcohols: Methanol, ethanol, isopropanol, ethylene glycol
Oils & Fats: Mineral oils, vegetable oils, animal fats
Limited resistance to: Strong oxidizing acids (concentrated), aromatic hydrocarbons, chlorinated solvents
